Product Description

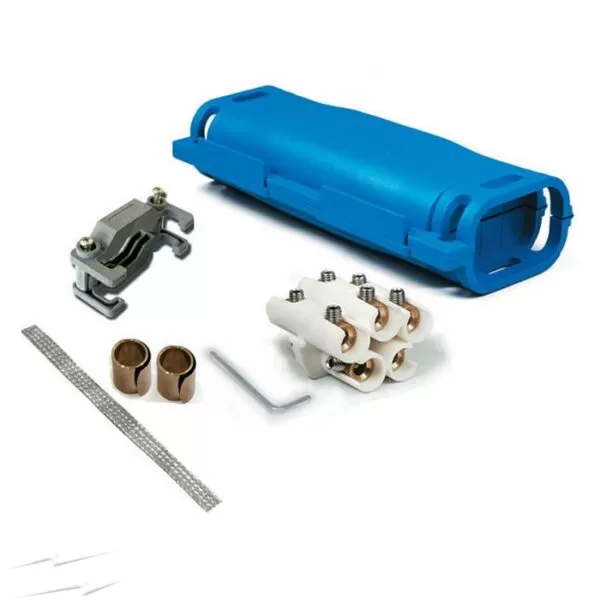

Wiska Shark 506 Gel Insulated Straight Joint 5 Pole 1.5mm – 6mm includes retention clamp, earth braid and constant force roll springs. Perfect for steel wired armour cable. Ready to use, re-enterable, no mixing or pouring, immediate operation, excellent electrical insulation, good mechanical strenght, no expiry date.
- Amp Rating: 80A
- Suitable Cable Sizes: (5 core) 1.5 – 6mm
- L x B x H: 55 x 146 x 35mm
Wiska Shark 506 Gel Insulated Straight Joint 5 Pole 1.5mm – 6mm Specifications
| Material | Polyamide |
| Filling | Silicone |
| Temp. range min | -20 °C |
| Temp. range max | 90 °C |
| Glow wire test | self-extinguishing |
| Voltage | 0,6 kV – 1 kV |
| Terminals/poles | 3 – 5 x 1,5 – 6 mm² |
| Quantity of cable | 3 – 5 |
| Order no. UK | SH506W |
| Type | SHARK 506W |
| Packing unit | 1 |
| ETIM-Classification | EC001169 |
Further Information
Our standard delivery service is provided by DX therefore GPS tracking and delivery notifications are available. Please include a mobile number and email address with your order if required.
If you require a quotation on a large amount of cable and/or accessories, please drop us an email at [email protected] or give our sales team a call on 01244 288138, as further discounts could be had on large orders.
Looking for a standard resin cable joint kit or a different size? Check out our full range of Cable Joints.
For more information regarding this Wiska joint kit, please refer to the manufacturers specification page.
