16A 5 Pin 415V SY Extension Lead x 10m

16A 5 Pin 415V SY Extension Lead x 10m

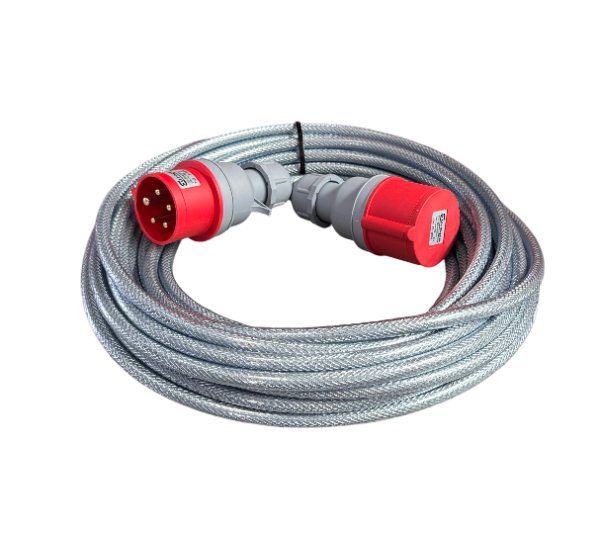

16A 5 Pin 415V SY Extension Lead x 10m is a form of three phase extension lead that is built using SY Cable. This brings with it a lot of benefits including extra protection against the elements due to it’s braided steel armour. It’s also resistant against thermal and mechanical stresses, whilst also being flexible.
All extension leads are inspected, tested and ready to use upon arrival. All leads including the following components:

• 16A 5 Pin IP44 415V Plug & Socket
• 2.5mm 5 Core SY Cable x 10m

** PLEASE NOTE; Each current rating (16A, 32A, 63A & 125A) have a different sized plug and socket. This means that you can’t use a 32A lead for a device that requires a 16A, for example. If you’re unsure which lead you require, please check the device you’re trying to provide power to. **

Cable Specification

• Voltage Rating: 300/500V
• Temperature Rating:
  Fixed: -40°C to +80°C
  Flexed: -5°C to +70°C
• Minimum Bending Radius:
  – Fixed: 4 x Overall Diameter
  – Flexed: 12.5 x Overall Diameter
• Conductor: Class 5 Flexible Plain Copper
• Insulation: PVC
• Inner Sheath: PVC
• Armour: Galvanised Steel Wire Braid
• Sheath: PVC
• Core Identification: Black Cores w/ White Numbers + Green/Yellow
• Insulation Thickness: 0.50mm
• Outer Sheath Thickness: 1.0mm
• Overall Diameter: 12.1mm
• Current Capacity: 26A
