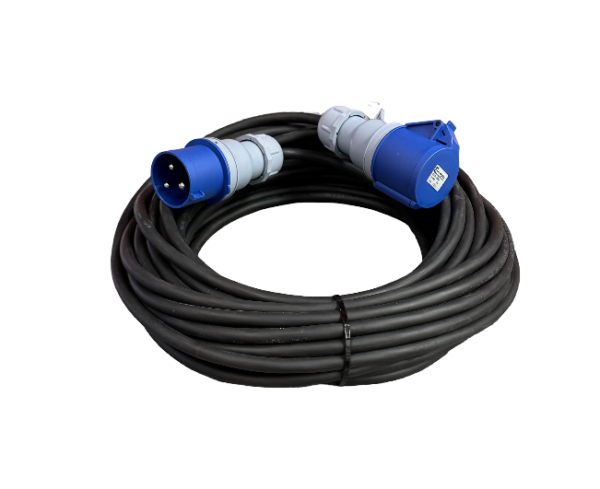

32A 3 Pin 240V H07RN-F Extension Lead x 15m

£57.45 Ex. VAT £68.94 Inc. VAT

32A 3 Pin 240V H07RN-F Extension Lead x 15m includes:

  • 4mm 3 Core H07RN-F Cable x 15m
  • 32A 3 Pin 240V Commando Plug & Socket
  • Fully tested and inspected by qualified Electricians
Bulk Savings Available
Qty Price
0 - 4 £57.45 Ex. VAT £68.94 Inc. VAT
5 - 9 £56.30 Ex. VAT£67.56 Inc. VAT
10+ £55.15 Ex. VAT£66.18 Inc. VAT
SKU: 32A-3P-H07-15
side-bar-delivery-banner
armoured-cable-sales-and-technical-banner

32A 3 Pin 240V H07RN-F Extension Lead x 15m

32A 3 Pin 240V H07RN-F Extension Lead x 15m are a rugged, hard-wearing extension lead, ready for outdoor and otherwise hazardous use. These extension leads come fully constructed and ready for immediate use.
These extension leads include the following:

  • 4mm 3 Core H07RN-F Cable x 15m
  • 32A 3 Pin Commando Plug and Socket
  • Tested and inspected by fully trained electricians prior to dispatch

** PLEASE NOTE; Each current rating (16A, 32A, 63A & 125A) have a different sized plug and socket. This means that you can’t use a 32A lead for a device that requires a 16A, for example. If you’re unsure which lead you require, please check the device you’re trying to provide power to. **

Cable specification

H07RN-F Cable is designed to provide high flexibility. Making the cable perfect for extension leads. It also has capacity to withstand weather, oils/greases, mechanical and thermal stresses. Applications include handling equipment, mobile power supplies, worksites, stage and audio visual equipment, port areas. Also for use in drainage and water treatment, cold environments and severe industrial environments. They are certified to the standards BS7919.

  • Temperature Rating: Conductor operating temperature -30°C to +60°C (85°C max)
  • Minimum Bending Radius:
  • Up to 25mm²: 6 x overall diameter

If you’d prefer a shorter length of this same extension lead or a 16A variant, other lengths and Amp ratings are available in our extensive range of H07RN-F leads.

Planning an upcoming project or job? Check out the latest Part P Building Regulations set out by the Government.

Additional information

Weight 2.9700 kg
Application

Fixed or Temporary Installations

Approx overall diameter (approximate size)

13.2mm

Approx weight per meter

Armour / Protection

Bedding

BS Number

BS EN 50525-2-21 (BS 7919), BS EN/IEC 60332-1-2, BS EN 60811-2-1

Colour

Black

Conductors

Copper

Core identification

Brown, Blue and Green/Yellow

Current Rating

delivery

Fast, nationwide delivery (mainland UK addresses)

Insulation

PVC (Polyvinyl Chloride)

Manufacturer

Operating temperature

-30°C to +60°C (85°C max)

Product Code

Rating

Sheath / Jacket

Rubber

Number of cores / size of cable

3 Cores, 4.0mm

Sort Code

Standard

Voltage

300/500V
