16A 3 Pin 240V SY Extension Lead x 25m

£53.45 Ex. VAT £64.14 Inc. VAT

Extension lead includes the following components:

  • 16A 3 Pin 240V Plug & Socket
  • 2.5mm 3 Core SY Cable x 25m
  • Fully tested and inspected, ready to use upon arrival
Bulk Savings Available
Qty Price
0 - 4 £53.45 Ex. VAT £64.14 Inc. VAT
5 - 9 £52.38 Ex. VAT£62.86 Inc. VAT
10+ £51.31 Ex. VAT£61.57 Inc. VAT
SKU: 16A-3P-SY-25
side-bar-delivery-banner
armoured-cable-sales-and-technical-banner

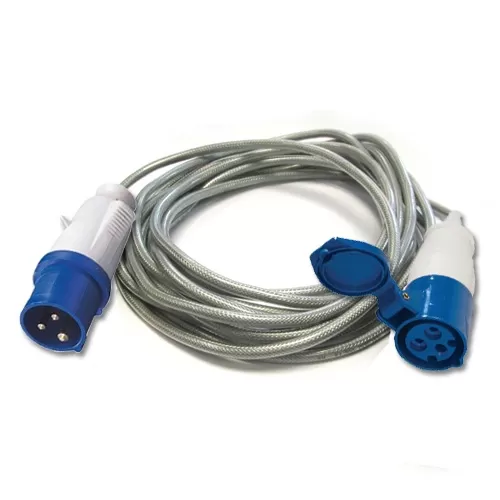

16A 3 Pin 240V SY Extension Lead x 25m

16A 3 Pin 240V SY Extension Lead x 25m, a form of 240V extension lead, constructed using SY Cable as opposed to standard flex cable. This makes these leads much harder wearing and perfect for site applications. These extension leads are ideal for caravan hook ups, tent hook ups, hook ups for boats and a whole host of other applications.
All extension leads are inspected, tested and ready to use upon arrival. All leads including the following components:

  • 16A 3 Pin 240V Plug & Socket
  • 2.5mm 3 Core SY Cable x 25m

** PLEASE NOTE; Each current rating (16A, 32A, 63A & 125A) have a different sized plug and socket. This means that you can’t use a 32A lead for a device that requires a 16A, for example. If you’re unsure which lead you require, please check the device you’re trying to provide power to. **

Cable Specification

  • Standards: Generally to BS6500, VDE0250
  • Conductor: Class 5 flexible annealed plain copper conductors to BS EN 60228:2005 (previously BS6360), VDE0295, IEC 60228
  • Insulation: PVC (Polyvinyl Chloride) Type TI 2 complying with BS EN 50363-3:2005
  • Bedding: PVC (Polyvinyl Chloride) TM2 as specified in BS EN 50363-4-1:2005
  • Braiding: GSWB (Galvanised Steel Wire Braid)
  • Minimum coverage of braiding shall be 50%
  • Sheath: PVC (Polyvinyl Chloride) conforming to TM 2 as specified in BS EN 50363-4-1:2005
  • Sheath Colour: Transparent
  • Voltage Rating: 300/500V
  • Operating Temperature: -15°C to +70°C
  • Minimum Bending Radius: 10 x overall diameter
  • Short Circuit Temperature: +160°C
  • Core Identification: Black with White numbers. (3 cores and above to include Green/Yellow).

Further Information

Fast delivery is available to all mainland UK addresses (please note; this excludes highlands and islands). Delivery is provided by DX therefore is GPS tracked with delivery notifications. Please include mobile number and email address with order if you want to be informed about your delivery.

Got an upcoming job you’re planning? Check out the latest Part P building regulations set out by the Government.

Additional information

Weight 4.0000 kg
Application

Fixed or Temporary Installations

Approx overall diameter (approximate size)

10.1mm

Approx weight per meter

Armour / Protection

Bedding

BS Number

VDE 0207-363-3, VDE 0285-525-2-51, VDE 0285-525-1, VDE 0285-525-2-11, VDE 0482-332-1-2, VDE 819-102 (TM54) Flame Retardant according to IEC 60332-1-2

Colour

Transparent

Conductors

Copper

Core identification

Brown, Blue and Green/Yellow

Current Rating

delivery

Fast, nationwide delivery (mainland UK addresses)

Insulation

PVC (Polyvinyl Chloride)

Manufacturer

Operating temperature

-30°C to +60°C (85°C max)

Product Code

Rating

Sheath / Jacket

Braided Armour

Number of cores / size of cable

3 Cores, 2.5mm

Sort Code

Standard

Voltage

300/500V
