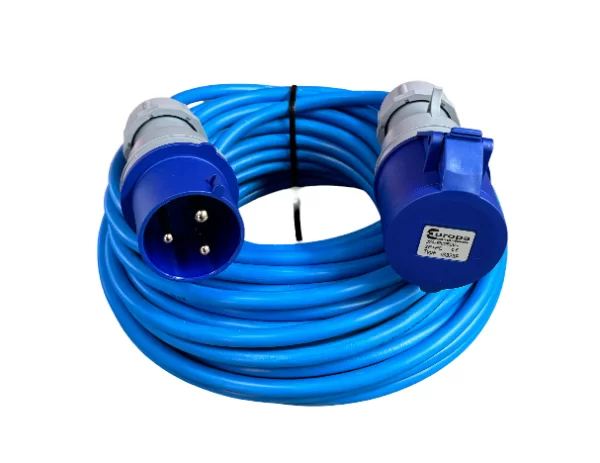

240V Blue Extension Lead 32A x 20M

240V Blue Extension Lead 32A x 20M – High quality 240V extension lead with a pre-installed IP44 32A 3 Pin plug & socket. These extension leads are built to order and inspected/tested by professionals for added peace of mind. If you require a PAT testing certificate for this extension lead, please contact us by phone 01244 288138 or email on [email protected] after placing your order to request one.

These extension leads are suitable for a variety of use-cases including caravan hookups, single phase welding equipment, mains 230/240V generators plus many more!

** PLEASE NOTE; Each current rating (16A, 32A, 63A & 125A) have a different sized plug and socket. This means that you can’t use a 32A lead for a device that requires a 16A, for example. If you’re unsure which lead you require, please check the device you’re trying to provide power to. **

240V Blue Extension Lead 32A x 20M Specifications

Cable Specifications:

• Overall Diameter: 11.3mm
• Current Rating: 32 Amps
• Outer Sheath Colour: Blue
• Voltage Rating: 300/500V
• Temperature Rating: Flexed -40°C to +60°C
• Minimum Bending Radius: Fixed 6 x overall diameter
• Conductor: Class 5 flexible copper conductor
• Insulation: Arctic Grade PVC (Polyvinyl Chloride)
• Sheath: Arctic Grade PVC
• Core Identification: Green/Yellow (Earth) | Blue | Brown
• Weight Per Metre: 0.299Kg

Plug/Socket Specifications:

• Colour & Voltage: Blue 240V
• Circuit Type: Single Phase
• Poles: 2P + E
• Protection Degree: IP44
• Plug Dimensions:
  – Length: 145mm
  – Width: 72mm
  – Lock Nut Width: 10-20mm
  – Gland Entry Width: 50mm
• Socket Dimensions:
  – Length: 156mm
  – Width: 89mm
  – Lock Nut Width: 50mm
  – Gland Entry Width: 10-20mm

Further Information

We sell a range of 240v extension leads to suit a variety of applications and requirements. If there is a type you can’t find among the range we have available here, please contact us via phone on 01244 288138 or alternatively, send an email enquiry to [email protected]. We may be able to source the type you need!

Also, contact us prior to placing bulk orders of any of the products we supply; we may be able to offer bulk discounts!
