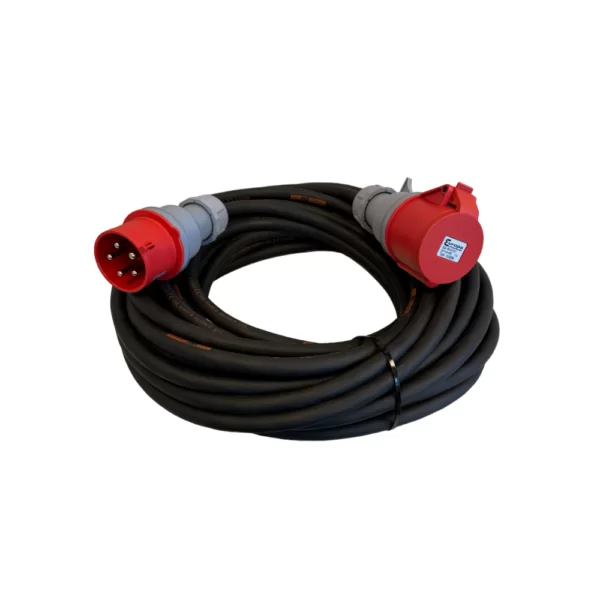

32A 5 Pin 415V H07RN-F Extension Lead x 25m

£107.75 Ex. VAT £129.30 Inc. VAT
  • 4.0mm x 5 Core H07RN-F Cable used
  • Includes IP44 5 Pin 32A Plug & Socket
  • Built and ready to use upon arrival
Bulk Savings Available
Qty Price
0 - 4 £107.75 Ex. VAT £129.30 Inc. VAT
5 - 9 £102.36 Ex. VAT£122.83 Inc. VAT
10 - 19 £96.98 Ex. VAT£116.38 Inc. VAT
20+ £91.59 Ex. VAT£109.91 Inc. VAT
SKU: 32A-5P-H07-25
Armoured Cable Payment Options
side-bar-delivery-banner
armoured-cable-sales-and-technical-banner

32A 5 Pin 415V H07RN-F Extension Lead x 25m

The 32A 5 Pin 415V H07RN-F Extension Lead x 25m is designed to provide power for a variety of three phase 415V applications and installations. The cable used for this extension lead is 4.0mm x 5 Core H07RN-F Cable and it also includes an IP44 32A 5 Pin 415V plug and socket. The extension leads we build are ready to use upon arrival.

Cable Specification

HO7RN-F Cable are designed to provide high flexibility and have the capacity to withstand weather, oils/greases and mechanical/ thermal stresses. Applications for this cable type would include handling equipment, worksites, mobile power supplies, stage & audio visual equipment, port areas and dams. Also for use in drainage and water treatment, cold environments and severe industrial environments. They are certified to the standards BS7919 and CENELEC HD22.4 S4 which verifies their quality.

  • Core Identification: Blue, Brown, Black, Grey & Green/Yellow
  • Voltage Rating: 450/750V
  • Temperature Rating:
    – Fixed: -30°C to +60°C
    – Fixed protected installations: +85°C
    – Flexed: -15°C to +60°C
  • Minimum Bending Radius:
    – Fixed: 4 x Overall Diameter
    – Flexed: 6 x Overall Diameter
  • Insulation Thickness: 1.0mm
  • Overall Diameter: 16.2mm
  • Weight Per Metre: 0.422kg
  • Current Rating: 35A (Three Phase AC)

Call our sales team on 01244 288138 today for an instant quotation, assistance, or if you require a quotation on a large order.

Planning an upcoming job? Check out the Part P Building Regulations set out by the Government.

Additional information

Weight 1.0000 kg
Conductors

Copper

Current Rating

32A

Description

3 Phase 415V Extension Lead HO7RN-F Cable 5 Pin 32A x 25M

Description

We cut the extension lead to the length you require, and with our stock we can offer fast delivery all over the UK. These extension leads are ideal for 3 phase generators, welders, transformers and all other 3 phase machinery and tools. This extension is constructed with rubber HO7RN-F Cable 2.5mm x 4 core and comes with a red 32A 5 pin plug and a 32A red 5 pin connector (socket).

Cable Specification

HO7RN-F Cable are designed to provide high flexibility and have the capacity to withstand weather, oils/greases and mechanical/ thermal stresses. Applications for this cable type would include handling equipment, worksites, mobile power supplies, stage & audio visual equipment, port areas and dams. Also for use in drainage and water treatment, cold environments and severe industrial environments. They are certified to the standards BS7919 and CENELEC HD22.4 S4 which verifies their quality.

Temperature Rating:

Conductor operating temperature -30°C to 60°C (85°C max)
Minimum bending radius:

up to 25mm²: 6 x overall diameter
above 25mm²: 8 x overall diameter
Core identification:

2 Cores: Blue, Brown
3 Cores: Green/Yellow, Blue, Brown or Black with White numerals, Green/Yellow
4 Cores: Green/Yellow, Brown, Black, Grey or Black with White numerals, Green/Yellow
5 Cores: Green/Yellow, Blue, Brown, Black, Grey or Black with White numerals, Green/Yellow

Call our technical sales team on 01244 288138 today for an instant quotation, assistance, or if you require a few different lengths of extension leads.

Insulation

Rubber

Operating temperature

-30°C to +60°C (85°C max)

Product Code

25m415v32aho75pin

Rating

32A

Number of cores / size of cable

5 Core / 4mm

Standard

Brown, Grey, Black, Green/Yellow
