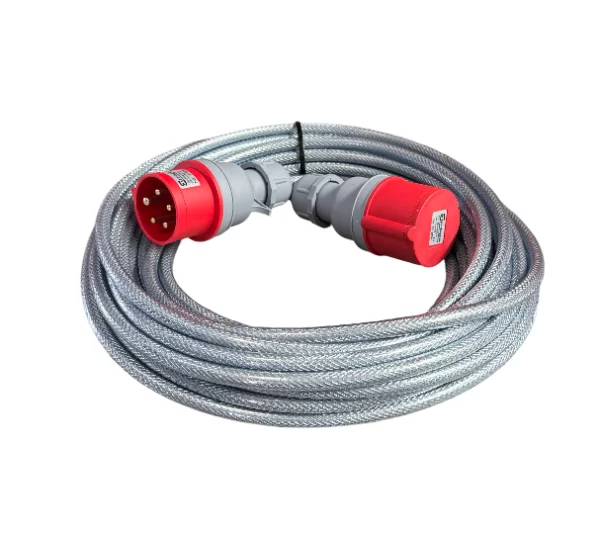

16A 5 Pin 415V SY Extension Lead x 15m

£55.00 Ex. VAT £66.00 Inc. VAT

Extension lead includes the following components:

  • 16A 5 Pin 415V Plug & Socket
  • 2.5mm 5 Core SY Cable x 15m
  • Fully tested and inspected, ready to use upon arrival
Bulk Savings Available
Qty Price
0 - 4 £55.00 Ex. VAT £66.00 Inc. VAT
5 - 9 £53.90 Ex. VAT£64.68 Inc. VAT
10+ £52.80 Ex. VAT£63.36 Inc. VAT
SKU: 16A-5P-SY-15

16A 5 Pin 415V SY Extension Lead x 15m

16A 5 Pin 415V SY Extension Lead x 15m is a type of three phase extension lead that is built using SY cable, meaning it has a form of braided armour underneath the sheath. This provides extra protection against knocks and scrapes as well as protecting against electromagentic interference.
All extension leads are inspected, tested and ready to use upon arrival. All leads including the following components:

** PLEASE NOTE; Each current rating (16A, 32A, 63A & 125A) have a different sized plug and socket. This means that you can’t use a 32A lead for a device that requires a 16A, for example. If you’re unsure which lead you require, please check the device you’re trying to provide power to. **

Cable Specification

  • Voltage Rating: 300/500V
  • Temperature Rating:
    Fixed: -40°C to +80°C
    Flexed: -5°C to +70°C
  • Minimum Bending Radius:
    – Fixed: 4 x Overall Diameter
    – Flexed: 12.5 x Overall Diameter
  • Conductor: Class 5 Flexible Plain Copper
  • Insulation: PVC
  • Inner Sheath: PVC
  • Armour: Galvanised Steel Wire Braid
  • Sheath: PVC
  • Core Identification: Black Cores w/ White Numbers + Green/Yellow
  • Insulation Thickness: 0.50mm
  • Outer Sheath Thickness: 1.0mm
  • Overall Diameter: 12.1mm
  • Current Capacity: 26A

Further Information

Fast delivery is available to all mainland UK addresses (please note; this excludes highlands and islands). Delivery is provided by DX therefore is GPS tracked with delivery notifications. Please include mobile number and email address with order.

Got an upcoming job you’re planning? Check out the latest Part P building regulations set out by the Government.

Additional information

Weight 1.0000 kg
Armour / Protection

GSWB (Galvanised steel wire braid)


PVC (Polyvinyl Chloride)




Class 5 flexible annealed plain copper

Core identification

Black with white numbers (3 cores and above to include green/yellow). Coloured cores available.

Current Rating



PVC (Polyvinyl Chloride)

Operating temperature

-15°C to +70°C

Product Code




Sheath / Jacket

PVC (Polyvinyl Chloride)

Number of cores / size of cable

5 Core / 2.5mm
